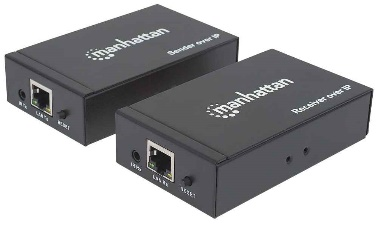

207959 1080p HDMI over IP Extender Splitter Kit

Standards and Certifications
HDCP 1.2,TCP/IP,DVI 1.0,CTS 1.2,CE,FCC,RoHS2

Source-to-switch range: up to 100 m (330 ft.)
Switch-to-display range: up to 100 m (330 ft.)
Combined distance source-to-switch-to-display 120 m (396 ft.)
Cat6 cable: 1080p at 120 m (396 ft.)
Cat6 cable: 720p at 160 m (528 ft.)
Cat6 cable: 480p at 200 m (660 ft.)
Cat5e cable: 1080p at 100 m (330 ft.)
Cat5e cable: 720p at 140 m (462 ft.)
Cat5e cable: 480p at 180 m (594 ft.)
Power: 5 VDC / 2 A (cable: 1.4 m [4.5 ft.])
LED indicator

One HDMI female, 19-pin (transmitter/receiver)
One RJ45 female (transmitter/receiver)
One 5 VDC power female, OD 5.5 mm / ID 2.1 mm (transmitter/receiver)
Two 3.5 mm IR female (transmitter/receiver)

Standard-definition TV, High-Definition TV
SDTV/HDTV/UHDTV: 480i/576i/480p/576p/720p/1080i/1080p

Maximum single-link range: 1.65 Gbps and 1080p resolution
Output video: HDCP 1.2, DVI 1.0
Frequency: 1.65 Gbps / 165 MHz
